MPPT - Solar Charge Controller 36v/48v

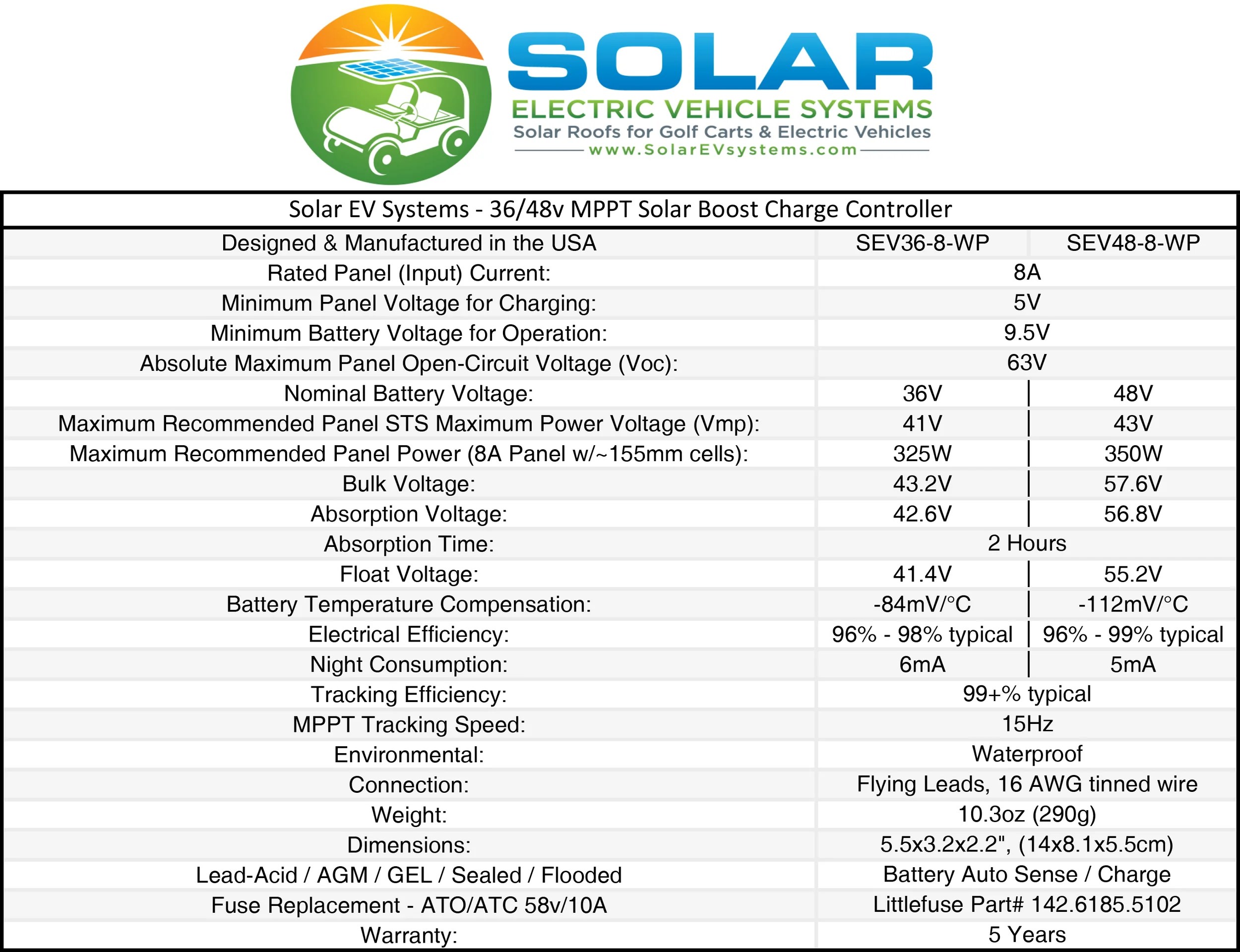

controller specs.jpg
controller specs.jpg

MPPT - Solar Charge Controller 36v/48v


Charge your 36v or 48v Golf Cart with almost any solar module!

Increase your range and battery life using the power of solar and the Solar EV MPPT Solar Boost Charge Controller .

Run your golf carts longer, with less maintenance using solar.

The Solar EV MPPT-Boost Solar Charge Controller is specifically designed for adding solar panel(s) to a golf cart. With the ability to use lower voltage (12V to 24V) solar panels with 36V or 48V batteries, our MPPT-Boost Controller is the industry's most efficient voltage-boosting solar charge controller.  With a powerful panel and sunshine, you will be able to drive up to 10+ miles per day on the sun.  You may never need to plug your cart in!

325-350W 8A input 36/48V MPPT Controller


  • Waterproof
  • 99% Peak Efficiency
  • Continuous MPPT
  • Advanced electronic protections
  • 5-Year Warranty
  • MADE in the USA

Boosting Panel Voltage Saves Money

Most solar charge controllers move power from a higher voltage panel to a lower voltage battery bank.  These golf cart solar charge controllers will take almost any solar panel and boost the voltage to charge a 36V or 48V battery pack.  Because these controllers feature true MPPT, no configuration is necessary; the controller will automatically adapt to your panel and not to forget the Four-Wire installation.

Running circles around the Competition

You have a limited amount of space on the roof of your golf cart. Advanced electronics in the our controller extract more usable power from your panel than any other controller. These solar charge controllers are fully waterproof, which makes them ideal for golf carts and other applications where the controller will be exposed to moisture.

High-Speed MPPT: Always on Target

Not all Maximum Power Point Tracking controllers were created equally. Most use a sweep and sleep method that scans the entire voltage range every 30-60 seconds. That's okay for a clear day, with a stationary panel. But moving vehicles, and changing cloud cover requires a faster, more advanced controller. The Solar EV controllers adapt to changing light conditions 15 times every second. They are always on target, capturing every bit of available sunshine. Simply put, other controllers can't keep up.

Computer Controlled, Temperature-Compensated 3-Stage Battery Charging

Precise computer controlled charging ensures the optimal charge cycle for your battery. This increases the battery life and maximizes battery capacity. Our controllers for lithium batteries feature industry-standard Constant-Current Constant-Voltage (CC/CV) charging for widest battery compatibility.  Please call us for Lithium Chargers & Pricing!

Made in the USA

48/36-Volt MPPT Boost Controller Specifications & Installation Manual
